Features

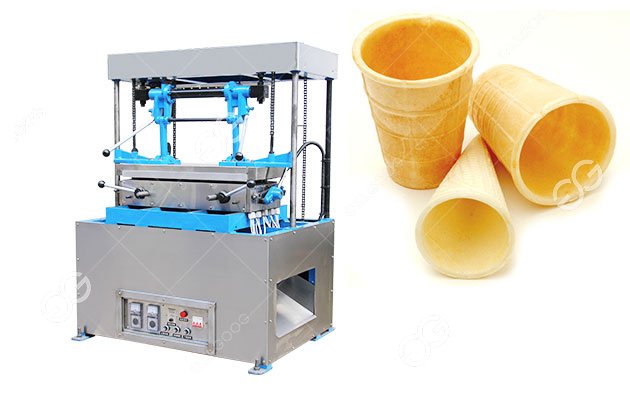

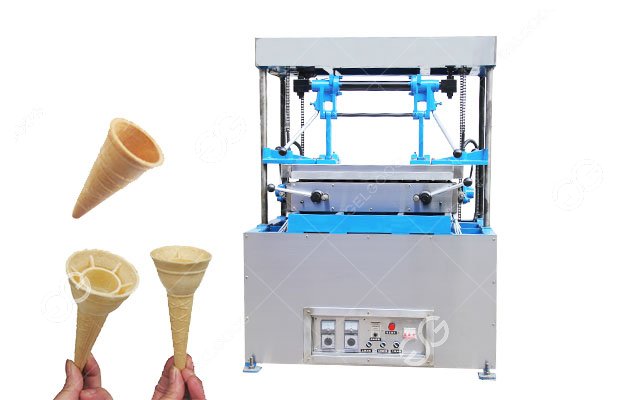

As an ice cream cone making machine manufacturer, our factory produces different kinds of cone machines and sells them to different countries and regions. Such as Saudi Arabia, UAE, Kuwait, Indonesia, Sri Lanka, Hyderabad, etc.
Multifunctional Use:
Multifunctional Use:

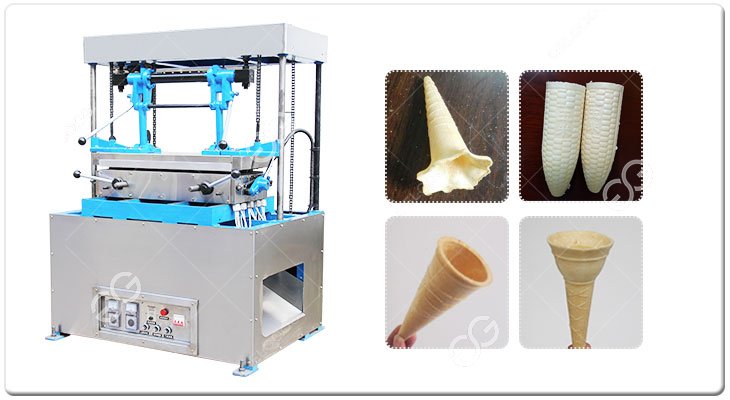

This machine is suitable for making all kinds of ice cream cones with flower shape, horn shape, corn shape, torch shape, bowl shape and other special shapes. Support those who want to customize the style of the cone (such as printing, patterns).
Specifications of Ice Cream Cone Machine:
Specifications of Ice Cream Cone Machine:
1. Passed ISO:9001 quality certification system to ensure the safety and reliability of the machine.
2. With high efficiency, there are different capacities of cone making machines for customers choose.
3. Replaceable mould can make all kinds of ice cream cones with different sizes and shapes.
4. Use stainless steel 304 materials for food contact parts, which is clean and hygienic.
5. The machine is easy to operate, and there is a temperature control button at the bottom to adjust the temperature.
Video of Wafer Ice Cream Cone Making Machine:
Ice Cream Cone Making Machine Working Process

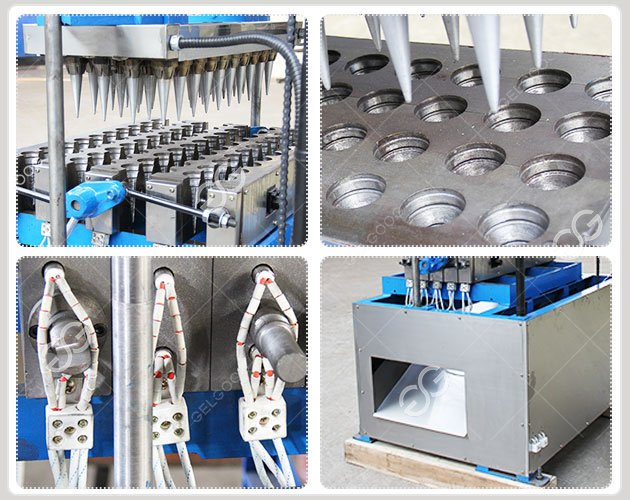

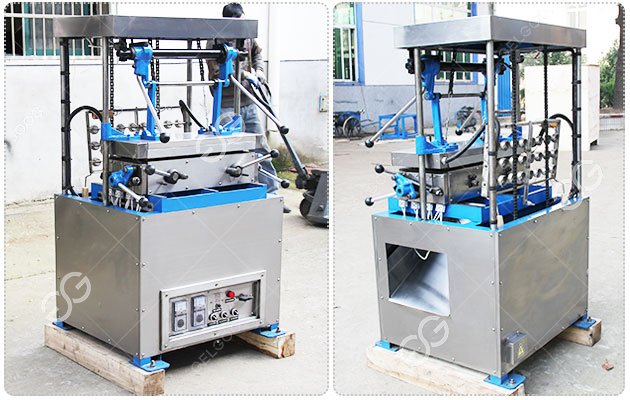

1. This equipment is divided into the upper mold, lower mold, base, four pillars, motor and other parts.
2. when the machine's using through the temperature control knob, the temperature first tune up, the temperature rose up after the upper die to pull up and lower mold together and pour into pastes.
3. And then on the molding under the mold close, the ice cream cone maker machine was about one or two minutes later, the cone can shape, and the upper die to pull up under the mold opened.
4. Finally, the ice cream wafer cone will automatically fall into the followingand slide channel.
Scope of Application:
This machine produced by ice cream cone making machine manufacturer is apply to tea restaurant, cake room, coffee shop, bakery, western food shop, restaurants, leisure food factory, ice cream factory, biscuit factory and other plant.
Whether in Hyderabad, or in South America, Africa, Asia, Europe, North America, Oceania and other regions, if you need a cone machine, our factory will ship the manufactured equipment to your country.
Technical Data
Model | GGDW-40C |
Quantity of moulds | 40PCS |
Capacity(PCS/H) | 1200-1400 |
Baking time | 1-2 minutes |
Operation | Semi automatic |
Power | 18KW |
Voltage | 380V |
Machine size(MM) | 1080*890*1465 |
Packing size(MM) | 1120*930*1620 |
Net Weight | 660KG |
Gross weight | 720KG |
