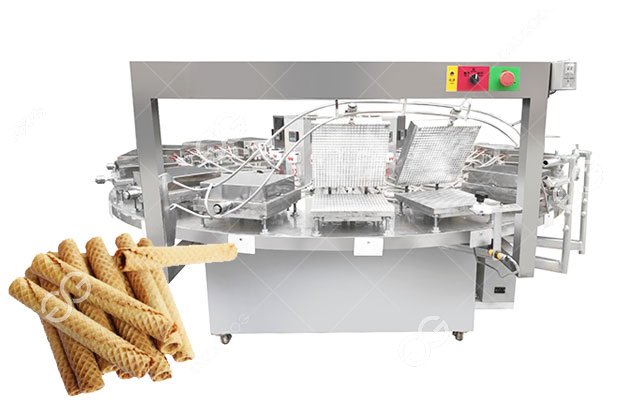

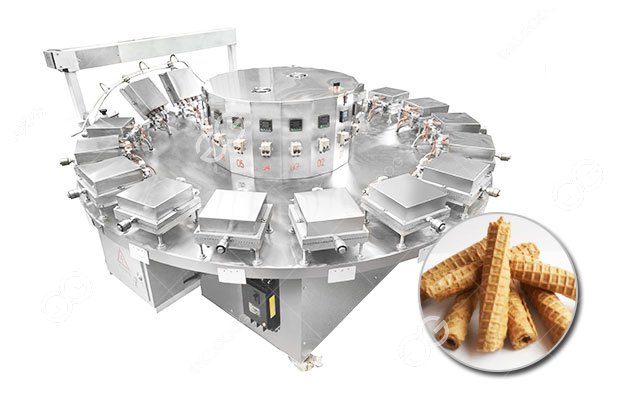

Commercial Barquillo Making Machine For Sale Customized
| Model | GGDCD-15 |
| Capacity | 800-1000 PCS/H |
| Voltage | 380 V |
| Size | 1800*1800*1250 MM |
Features
The commercial barquillo making machine is developed by our company, and this series is specially provided for the production of small and medium-sized products.

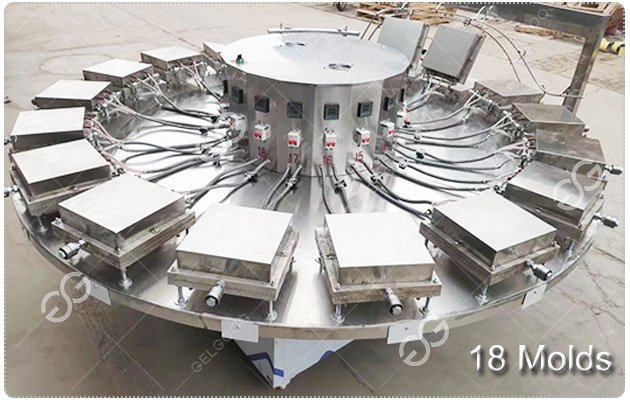

This machine is composed of 6-18 sets of baking plates, representing different output. The barquillo produced has many styles and good taste. Often for sale to countries around the world.
In order to let everyone know how the machine works, the following shows a testing video of the barquillo machine. The whole process is simple to operate and only requires one operator.
This machine is composed of 6-18 sets of baking plates, representing different output. The barquillo produced has many styles and good taste. Often for sale to countries around the world.
In order to let everyone know how the machine works, the following shows a testing video of the barquillo machine. The whole process is simple to operate and only requires one operator.
Features of Commercial Barquillo Making Machine:
1. Automatic grouting, the machine opens automatically when the barquillo was mature, and one person operates it, which is convenient and practical.
2. Adopt high-quality electrical components, and the thermostat adopts stepless temperature regulation and temperature control freely.
3. The whole barquillo maker machine adopts high-quality parts, and the part in contact with food is 304 stainless steel, which is anti-corrosion and anti-rust.
3. The shape of the crispy barquillo is beautiful, the entrance is crisp, the production is simple, the investment is small, and the return is high.
4. This machine is the most ideal processing machine for wafer barquillo, which is a popular food in the current food consumer market.
Application of Barquillo Maker Machine:
Application of Barquillo Maker Machine:
Advantages of Barquillo Making Machine
1. Product diversification: This equipment can produce flat-mouthed cones, natural side cones, egg rolls, bowl-shaped cups, etc.;
2. Safety: Equipped with an advanced control cabinet, the wires used are all copper core wires that meet the national safety standards, and are connected with a leakage protection device, which can be automatically cut off in emergency situations;
3. It is easy to operate, saves labor costs, and can be fully operated by one person. It occupies a small area and saves land costs. The finished products are bright in color and the size can be customized according to requirements.
4. Material: The frame is mainly welded with high-quality steel, the baking tray is made of high-quality ductile iron, and the outsourcing is made of stainless steel. The machine is durable and easy to clean;
5. The operating speed of the machine and the temperature of each bakeware can be adjusted according to demand, and the temperature of each bakeware can be different;
6. Operation: The equipment starts to operate after the commissioning is completed, and it rotates continuously and automatically, and the operating speed can be adjusted according to requirements;

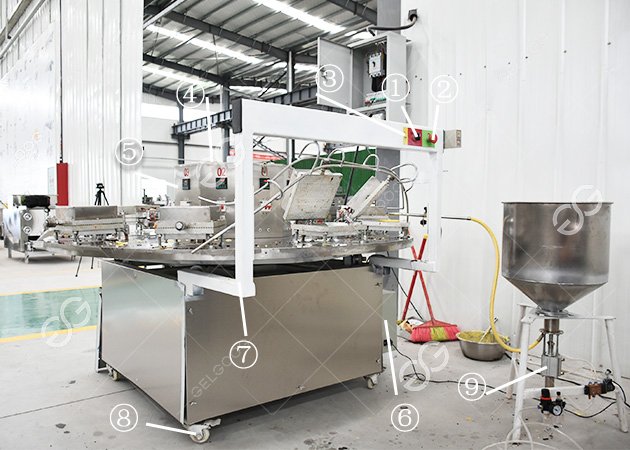

Machine Structure:
1. Operation switch; 2. Stop button; 3. Power indicator, running light, loading indicator light; 4. Heating switch; 5. Temperature controller; 6. Distribution box; 7. Frame; 8. Universal wheel; 9. Adjustable cylinder; 10. Main power switch; 11. Reducer; 12. Needle bearing; 13. Big gear; 14. Gravity bearing; 15. Spray pipe; 16. Photoelectric switch; 17. Temperature controller; 18. Thermometer; 19. Grouting solenoid valve.
1. Operation switch; 2. Stop button; 3. Power indicator, running light, loading indicator light; 4. Heating switch; 5. Temperature controller; 6. Distribution box; 7. Frame; 8. Universal wheel; 9. Adjustable cylinder; 10. Main power switch; 11. Reducer; 12. Needle bearing; 13. Big gear; 14. Gravity bearing; 15. Spray pipe; 16. Photoelectric switch; 17. Temperature controller; 18. Thermometer; 19. Grouting solenoid valve.
Technical Data
| Model | Capacity(PCS/H) | Power(KW) | Biscuit Size(CM) | Biscuit Thickness(MM) | Dimension(MM) | Weight(KG) |
| GGDCD-6 | 300 | 10 | 7-20 | 0.5-4 | 1400*1400*1250 | 250 |
| GGDCD-9 | 400-600 | 14.5 | 7-20 | 0.5-4 | 1600*1600*1250 | 270 |
| GGDCD-12 | 600-800 | 19 | 7-20 | 0.5-4 | 1700*1700*1250 | 300 |
| GGDCD-15 | 800-1000 | 23 | 7-20 | 0.5-4 | 1800*1800*1250 | 330 |
| GGDCD-18 | 1000-1200 | 28 | 7-20 | 0.5-4 | 1900*1900*1250 | 360 |
