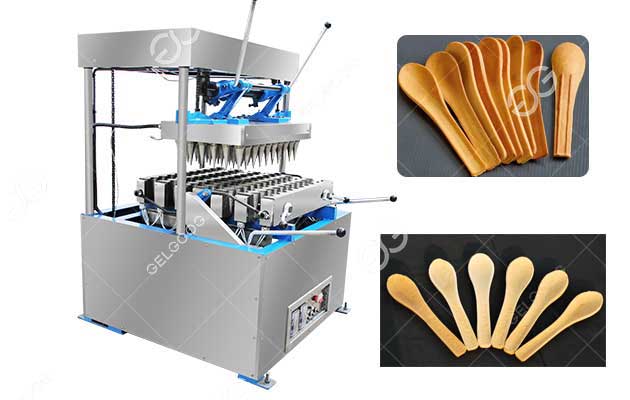

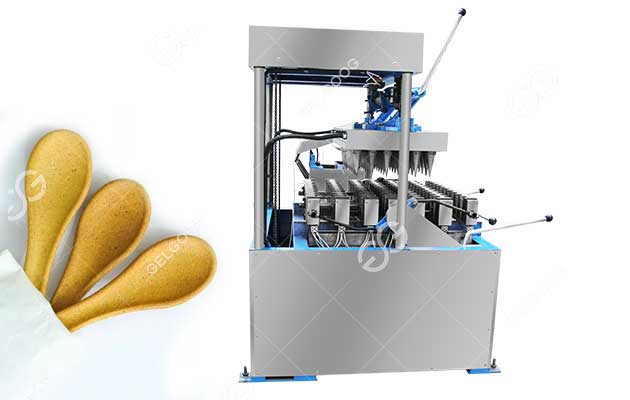

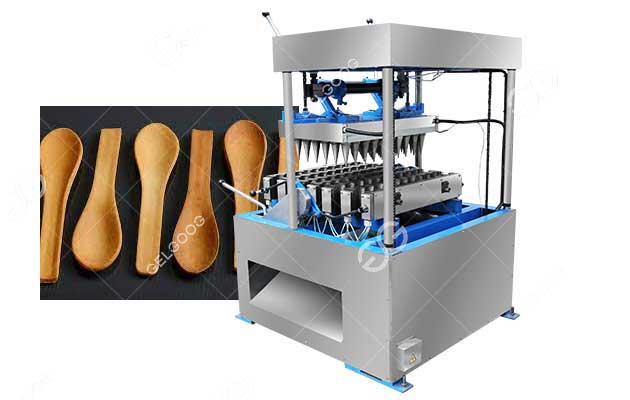

Automatic Edible Spoons Making Machine for Bakery GGDW-60C
| Model | GGDW-60C |
| Capacity | 2400-3000PCS/H |
| Voltage | 380V |
| Size | 1120*1180*1550MM |
Features
Automatic Edible Wafer Cup Introduction
This edible spoons making machine with user-friendly design, simple operation, it is specialized in ice cream cones processing, different shapes and sizs of edible cone and edible spoons can be produced.
This edible spoons making machine with user-friendly design, simple operation, it is specialized in ice cream cones processing, different shapes and sizs of edible cone and edible spoons can be produced.
This ice cream cone machine is an automated equipment of our company. Its biggest feature is its large capacity and simple operation. According to the needs of different users, we have three models to choose from.
This best commercial ice cream cone machine is divided into the upper die and lower die, when operate the machine, through the knob to control temperature, the temperature tune up first, the temperature rose up after the upper die to pull up and lower mold together and pour into pastes, and then on the molding under the mold close, it was about one or two minutes later, the wafer cone shape was finished, the upper die to pull up under the mold opened, and the cone will automatically fall into the following and slide channel.
Specifications of Edible Spoons Making Machine
1. This machine is made of high quality stainless steel 304, to ensure the edible cup and spoons food safety and health.

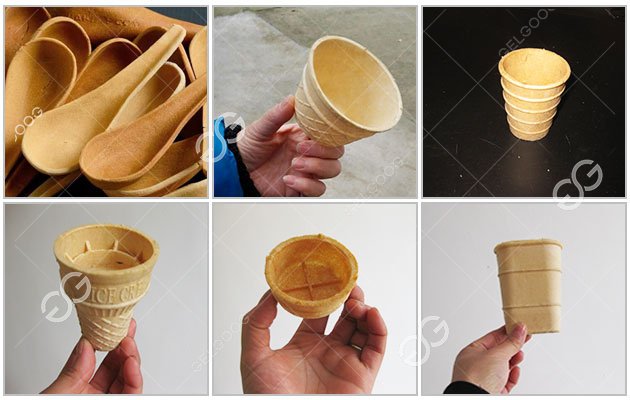

2. It is a full automatic ice cream cone machine, not only can produce edible cups, but also ice cream cones.
3. This machine has a large capacity for commercial use. Easy to operate, easy to clean and install.
3. Nice quality, the main parts of the edible spoons machine use the advanced materials to made.
4. Pass the CE certification, it's quality has guaranteed, customer use it comfort.
5. Changing the machine mould, the cone making machine can produce the different shapes ice cream cones.
The Features of Ice Cream Spoons Machine
✰ Mold Quantity: This edible spoons maker machine equipped with 60 head.
✰ Mold Quantity: This edible spoons maker machine equipped with 60 head.
✰ Cone Size: Can make ice cream cones in regular sizes, also it can be customized.
✰ Materials: The outer casing is made of carbon steel, and the food contact part is made of 304 stainless steel.
✰ Capacity/Output: The machine for making cones with 2500-3000 pieces.
✰ Mold Material: This baking molds is made of Aluminum, to prevent the cone sticking to the mold.
The edible spoon making machine is divided into an upper mold and a lower mold. When the machine is operated, the temperature is set and controlled through the LCD display. Adjust the temperature first, after the temperature rises, start grouting, and then the upper mold and the lower mold are merged. After about a minute or two, the wafer cone is formed, the excess scrap is cut off, the lower mold opens, and the edible cups and spoons will automatically fall from the lower mold.
The edible spoon making machine is divided into an upper mold and a lower mold. When the machine is operated, the temperature is set and controlled through the LCD display. Adjust the temperature first, after the temperature rises, start grouting, and then the upper mold and the lower mold are merged. After about a minute or two, the wafer cone is formed, the excess scrap is cut off, the lower mold opens, and the edible cups and spoons will automatically fall from the lower mold.
Technical Data
| Model | GGDW-60C |
| Capacity(PCS/H) | 2400-3000 |
| Quantity of Moulds | 60PCS |
| Baking time | 1-2 minutes |
| Operation | Semi automatic |
| Power | 21KW |
| Voltage | 380V |
| Machine size(MM) | 1120*1180*1550 |
| Packing size(MM) | 1240*1180*1660 |
| Net Weight | 1046KG |
| Gross weight | 1130KG |
