Features

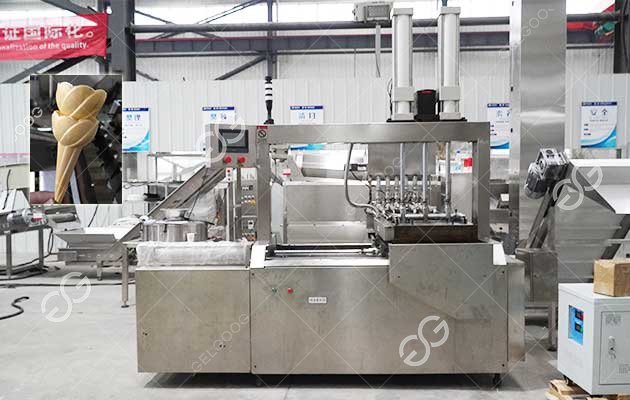

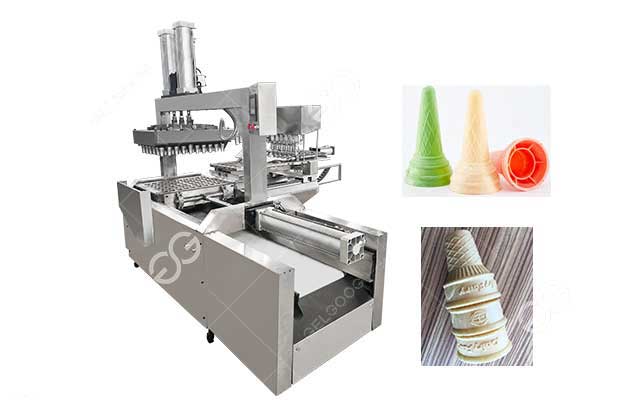

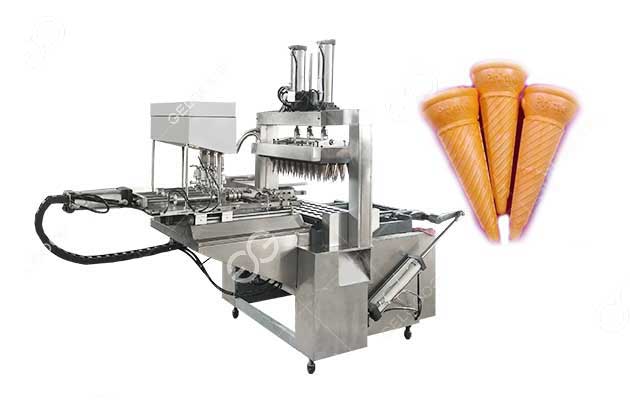

The automatic ice cream cone biscuit machine is an efficient cone equipment. It uses flour as raw material and can produce beautiful edible puffed cone biscuits in batches.
Molds of the same type can be used interchangeably. One piece of equipment can be matched with molds of multiple cone shapes to achieve the production function of cones of different shapes.
Molds of the same type can be used interchangeably. One piece of equipment can be matched with molds of multiple cone shapes to achieve the production function of cones of different shapes.
Operation Process of Ice Cream Cone Biscuit Machine
- First step, take the machine flat on the horizontal surface and not tilt.
- The second step, connect the power supply and set the operating parameters on the display: upper and lower mold temperatures, baking time, grouting amount, etc.
- In the third step, after the temperature rises, the batter is poured into the lower mold of cone biscuit machine, and then the button is pressed to close the upper and lower molds.
- Forth step, after baking about 1 to 2 minutes, the ice cream cone biscuits shaped can be formed by using this cone making machine.
- Fifth step, after the production is completed, the lower mold is automatically opened, and these ice cream cones fall into the conveyor belt below.
Features of Automatic Cone Making Machine
- It adopts the high quality electrical components, strong and sturdy, long use time.
- This ice cream biscuit cone making machine can make cone biscuit with high efficiently, and the size of cone can be customized.
- The upper mold and lower mold are made of stainless steel 304, it can make the ice cream cones safety and healthy.
- This type of ice cream cone biscuit machine has different models, different degrees of automation, and a wide range of output options.
- This cone machine was designed humanization, simple operation, convenient and practical.
- The machine has affordable price and easy to use, making it an ideal equipment for cone biscuit processing.
Automatic Ice Cream Cone Biscuit Machine Working Video
Ice Cream Cone Machine Manufacturer
Gelgoog Machinery Co., LTD. is an ice cream cone equipment manufacturing enterprise which is developed, produced and sold in one. This factory is located in Henan province, Zhengzhou city, convenient transportation. Equipment mainly includes wafer cone machine, sugar cone machine, pizza cone machine, egg tart machine, wafer biscuit production line and so on. If customers interested in these machine, please contact us at any time. We will make the quotation according to the customer's specific request.
Technical Data
Model | GGDWL-40F | GGDWL-60F | GGDWL-120F |
Drive Motor | 15KW, 380V, 50 Hz | 24KW, 380V, 50 Hz | 48KW, 380V, 50 Hz |
Heating Method | Electric | Electric | Electric |
Capacity | 1200-2600 pcs/h | 1500-2800 pcs/h | 2500-4500 pcs/h |
Dimension | 2400*1500*2050mm | 2400*2700*2600mm | 4800*2700*2600mm |
Total Weight | 1300kg | 1800kg | 4300kg |
Baking Cones/Time | 40 pieces | 60 pieces | 120 pieces |
Baking Time | 1 min | 1 min | 1 min |
