Features
Description of Icecream Cone Making Machine

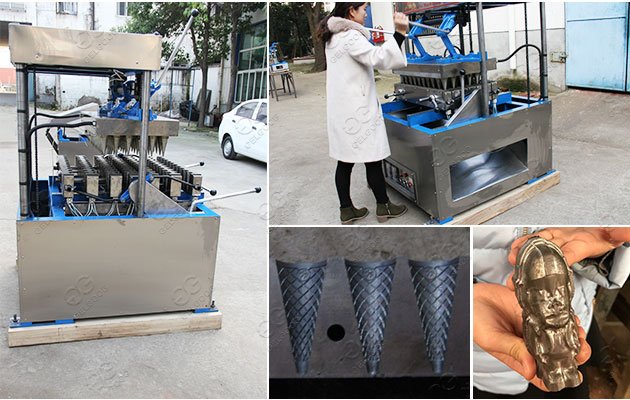

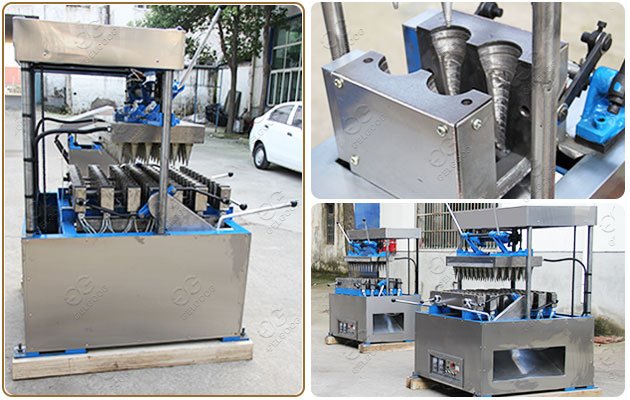

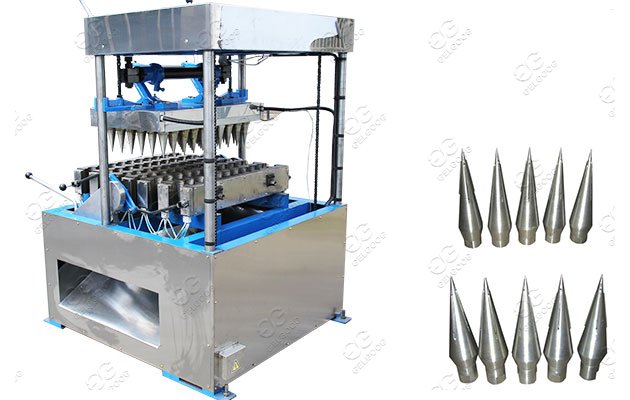

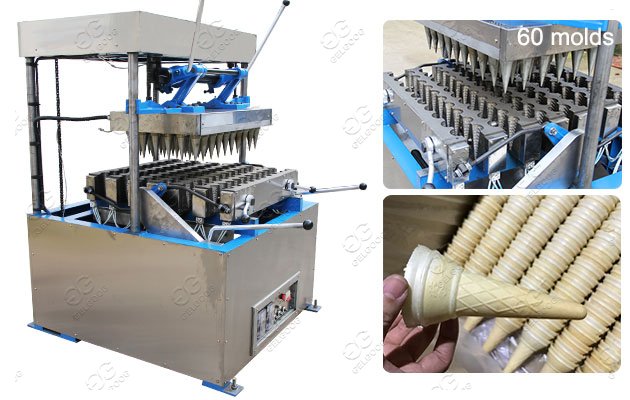

This machine is widely used for making icecream cones, different shapes and sizes can be produced. Stainless steel material, it is more hygienic. Industrial purposes, so it's output is large, 60 pieces are produced each time, about 1800 pieces per hour.
Testing Video of Industrial Icecream Cone Machine
Five Steps Operation Icecream Cone Making Machine
1. Brush some oil on the surface of the upper die and lower die, wafer ice cream cones are easier to demold.
This machine is widely used for making icecream cones, different shapes and sizes can be produced. Stainless steel material, it is more hygienic. Industrial purposes, so it's output is large, 60 pieces are produced each time, about 1800 pieces per hour.
Testing Video of Industrial Icecream Cone Machine
Five Steps Operation Icecream Cone Making Machine
1. Brush some oil on the surface of the upper die and lower die, wafer ice cream cones are easier to demold.
2. Adjust the temperature control knob, and heating the mold, waiting for the temperature of the mold to rise.
3. Pull the upper die and close the lower die when the temperature rises up, then pour the liquid into the lower mold.
4. Match the upper die and lower die together, waitting one to two minutes, the ice cream cone will form the shape.
5. Pull up the upper mold and open the lower mold, the finished cones will slip down automatically through the channel.
There are many models of ice cream cone machines in this series, with output from small 100pcs/h to large 6000pcs/h. Different sizes of cones can be achieved by changing the mold. Users can choose according to their needs. If you want to buy icecream cone making machine, please contact us. We will send the quotation with the preferential cost.
There are many models of ice cream cone machines in this series, with output from small 100pcs/h to large 6000pcs/h. Different sizes of cones can be achieved by changing the mold. Users can choose according to their needs. If you want to buy icecream cone making machine, please contact us. We will send the quotation with the preferential cost.
Technical Data
Model | GGDW-60C |
Capacity(PCS/H) | 1500-2400 |
Quantity of Moulds | 60PCS |
Baking time | 1-2 minutes |
Operation | Semi automatic |
Power | 21KW |
Voltage | 380V |
Machine size(MM) | 1120*1180*1550 |
Packing size(MM) | 1240*1180*1660 |
Net Weight | 1046KG |
Gross weight | 1130KG |
