Automatic Ice Cream Wafer Cone Making Machine GG-40
| Model | 1 |
| Capacity | 200 Sets per Month |
| Voltage | Qingdao Port |
| Size |
Features

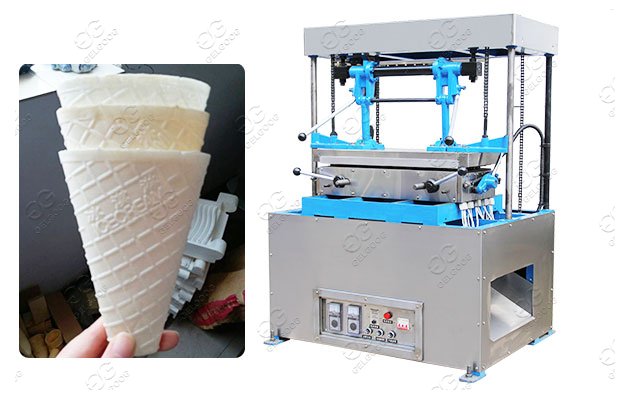

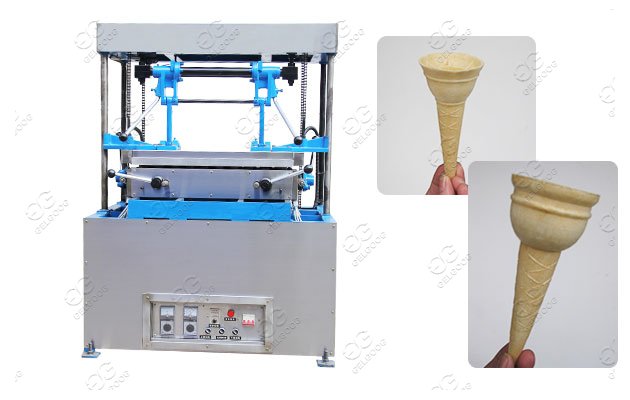

Introduction of Hot Sale Ice Cream Cone Making Machine

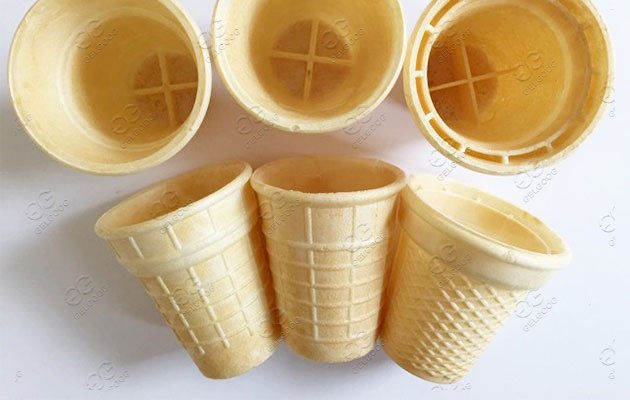

This ice cream wafer cone making machine was designed user-friendly, simple operation. This equipment can be used to make many types of wafer cones, with beautiful appearance, and support custom-made some special ice cream cones, such as patterns, logos, texts and so on.
This machine is divided into the upper die and lower die, the lower mold is used to hold the batter(when it is closed). There is a button to adjust the temperature on the fuselage, which can be adjusted freely according to needs.
Application of Semi Automatic Wafer Cone Machine
Application of Semi Automatic Wafer Cone Machine
Tea restaurant equipment, cake room equipment, coffee shop equipment, bakery equipment, western food shop equipment, liquor stores equipment, restaurants equipment, leisure food factory equipment factory, frozen fruits and vegetables processing equipment and other factory.

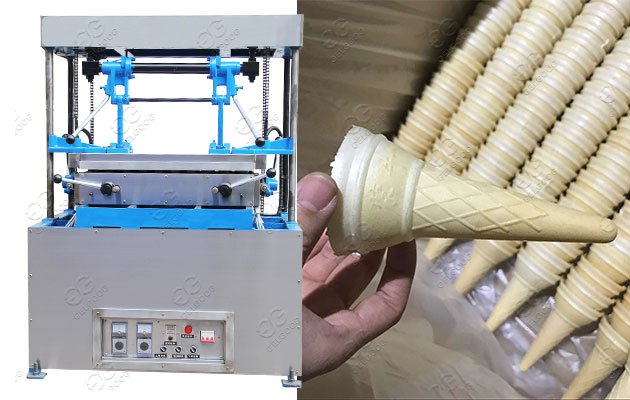

Operation Process of Ice Cream Wafer Cone Making Machine
Operation Process of Ice Cream Wafer Cone Making Machine
1. Through the knob to control temperature, the temperature first tune up, the temperature rose up.
2. After the upper mold to pull up and lower mold together and pour into paste.
3. And then combine upper and lower molds, waitting for one or two minutes later.
4. The cone can shape, the upper die to pull up under the mold opened, and the cone will automatically fall into the following and slide channel.
After- sale Service
If you want to buy the ice cream wafer cone making machine, we provide engineers to install, debug and operate training. This machine from your purchase date warranty for one year, in the warranty period equipment quality problems, my company sent professional and technical personnel to timely door-to-door maintenance, the cost of our company to carry out the implementation of life-long tracking service system.
Welcome to visit the factory, you can take the products you need to the company's on-site testing machine. If not convenient to the scene can also provide samples, pictures, specific parameters (product length, width and thickness) to our company. Company synthesis of your requirements and product specific parameters for you to describe in detail which machinery most suitable for packaging your products and provide you with a set of solutions.
Technical Data
| Model | GGDW-40C |
| Quantity of moulds | 40PCS |
| Capacity(PCS/H) | 1200-1400 |
| Baking time | 1-2 minutes |
| Operation | Semi automatic |
| Power | 18KW |
| Voltage | 380V |
| Machine size(MM) | 1080*890*1465 |
| Packing size(MM) | 1120*930*1620 |
| Net Weight | 660KG |
| Gross weight | 720KG |
